GENERAL
Blade projection 115 mm
Work surface height 950 mm
Max. clamp opening 110 mm
Total clamps 13

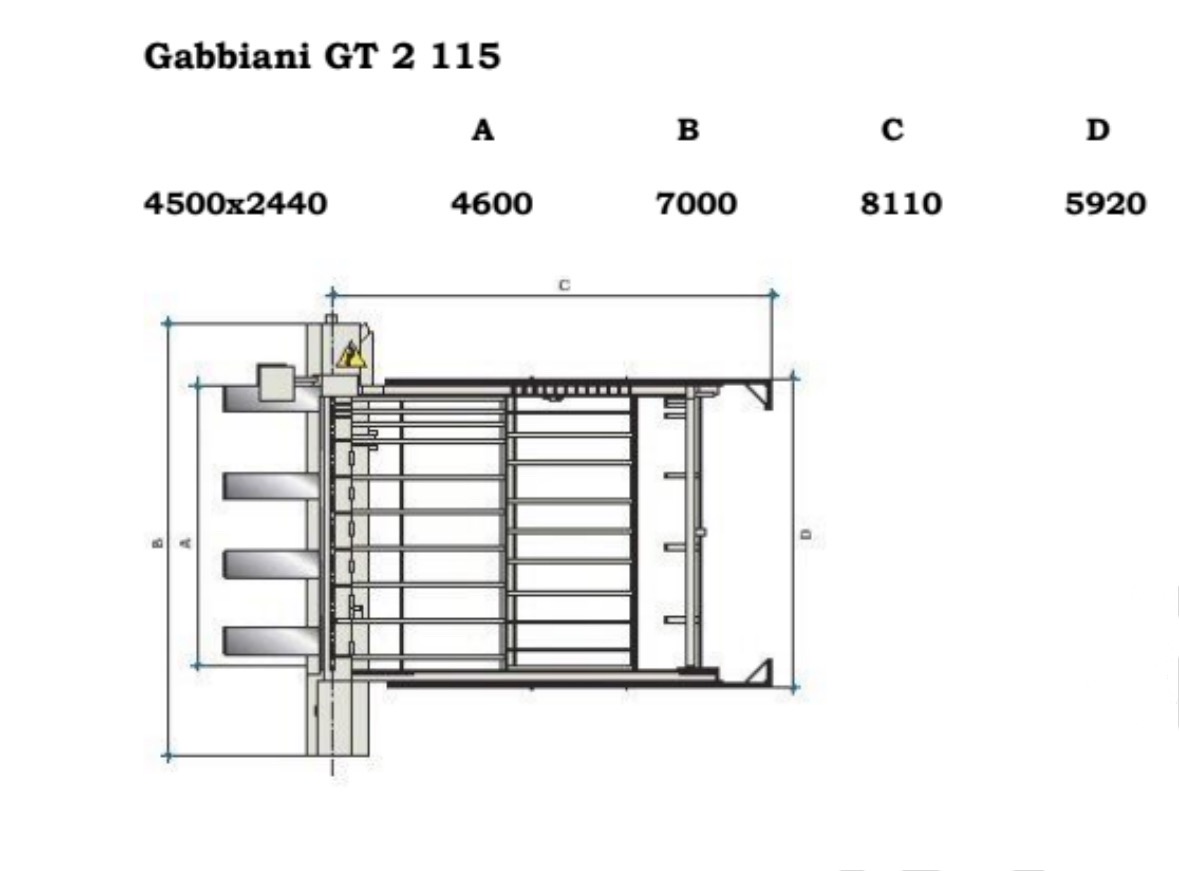

LOADING PLATFORM DIMENSIONS
45 mm version 4500 x 2440 mm

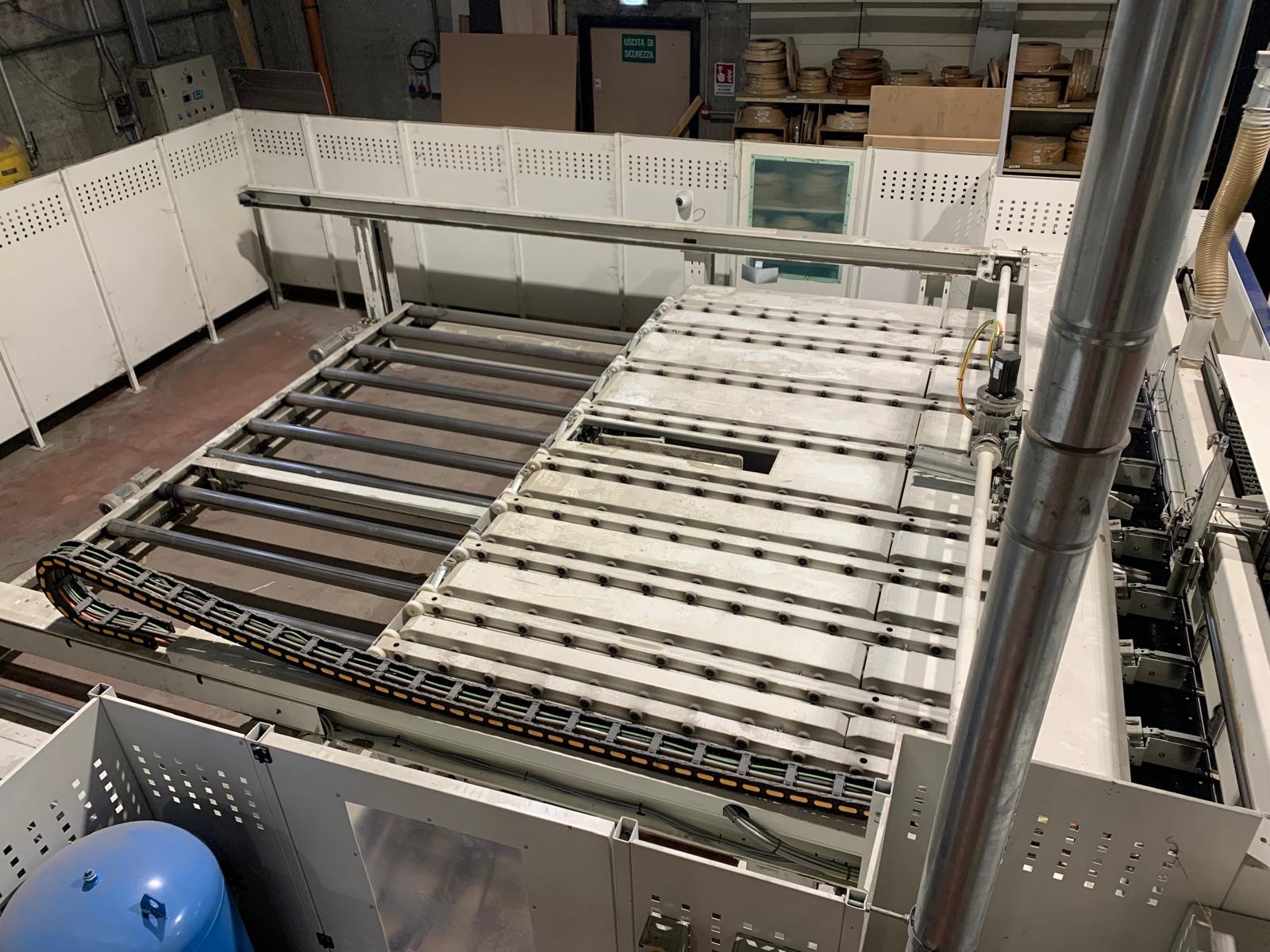

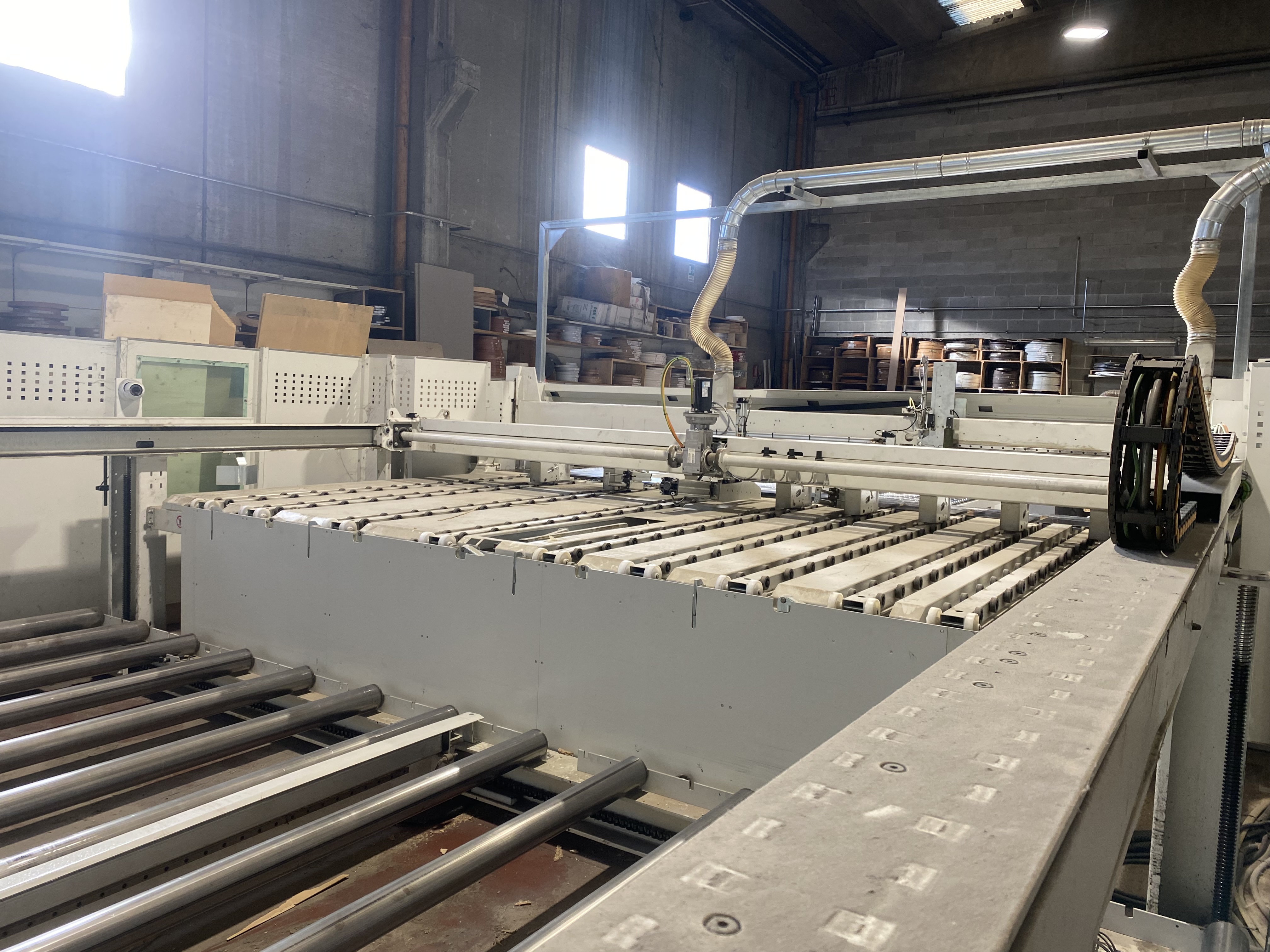

CROSS-MEMBER LOADING PLATFORM SPECIFICATIONS - Standard
Max. stack height 600 mm
Max. load capacity 6500 kg
Ascent/descent speed 0.75 m/min
Min. loading dimensions 1500 x 600 mm
Max. Loading capacity 4500 x 2440 mm
Minimum panel thickness at loading 10 mm
AXIS SPEED
Variable blade carriage speed 0 – 150 m/min
Variable pusher speed (**) 80 m/min
MAIN BLADE
Motor power 7.5 kW
Rotation speed 3900 rpm
Blade diameter 400 mm
Blade shaft diameter 80 mm
SCORING BLADE
Motor power 1.8 kW
Scoring blade diameter 200 mm
Scoring blade shaft diameter 80 mm
