Axes

Working area along X-Y-Z axes mm 3050 - 1250 - 180

Panel length along Y axis mm 1550

Panel length (for alternated work process) mm 1390

Vectorial speed X-Y axes  m/min 35

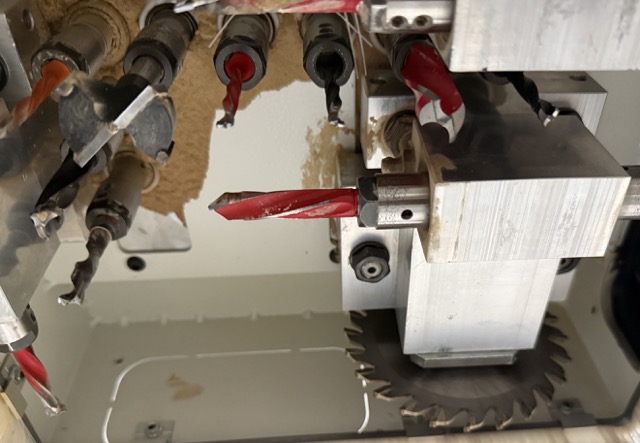

Boring head

Vertical spindles up to  No. rpm 12 (8X - 4Y) 6000

Horizontal spindles up to No. rpm 6 (4X - 2Y) 6000

Integrated blade in X Ø mm - rpm 120 - 7500

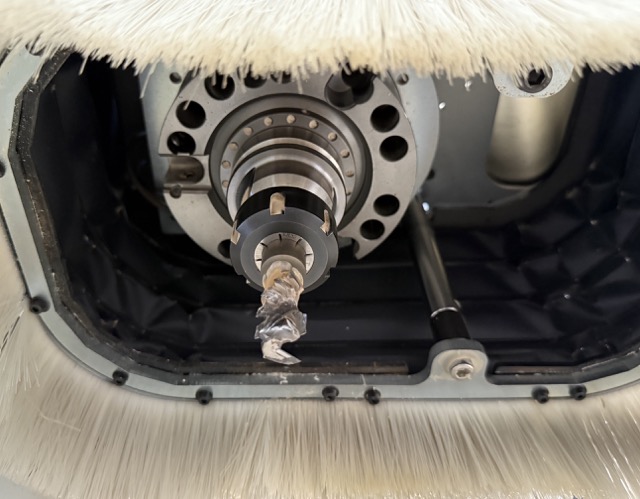

Electrospindle

Std motor power (S6) (B-C versions) kW (Hp) 9,5 (13)

Max. speed rpm 24000

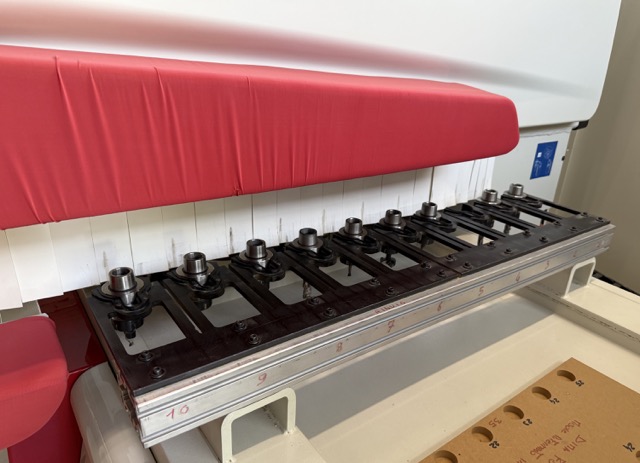

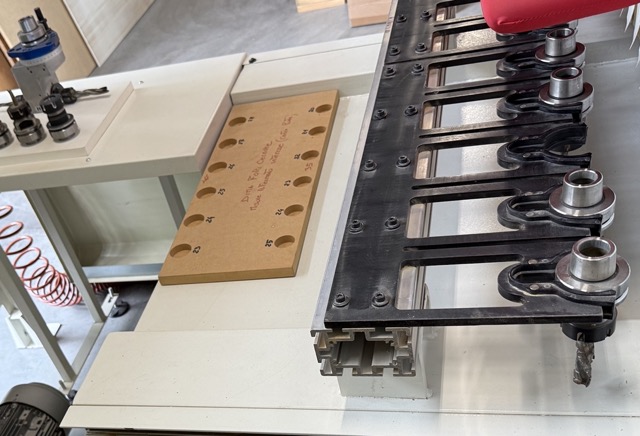

Tool changer on the carriage in X (base) places 4 (10) Installation
